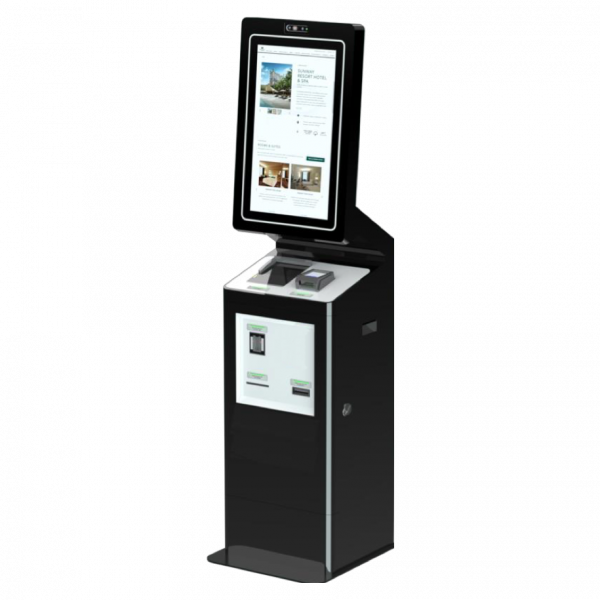

Hotel Self-check-in Kiosk
Our hotel self-check-in kiosks support not just check-in but also check-out. If a guest has already a reservation, he or she just scan their ID or passport on the kiosk and get the room key after verification. Guests can also walk in, check available rooms on the kiosk, pay directly by cash, eWallet or credit card. When checking out, guests can return the room key to the kiosk and settle payment when needed. Very convenient!
Specifications
Model name | ||
KH-1760 (1) | KH-1760 (2) | |
System Configuration | ||
Processor |
Intel® Core™ i3-6100TE Processor 4M Cache, 2.70 GHz
Intel® Core™ i5-6500TE Processor, 6M Cache, up to 3.3GMhz
Intel® Pentium® Processor G4400TE 3M Cache, 2.40 GHz
|
Intel® J1900 Processor 2M Cache, 2.00 GHz up to 2.42 GHz |
System Memory | DDR4 2133MHz SO-DIMM x 1, Default 4G, Max. 8GB |
DDR3L-1600Mhz SO-DIMM x 1, Default 4G, Max 8GB |
Storage Device | SATA 2.5″ SSD (default 120G SSD), Option 2.5″ HDD | |
Power Supply | DC12V/7.5A – 90W external power adapter. AC100 to 240V full range | |
O/S Support | Win 10 PRO, Win 10 IoT, Win 7, POSReady 7 | |
3″ Thermal Printer | speed up to 250mm/s at 203dpi,media width 83/80/60/58/20, 120 mm media roll diameter |
|
Barcode Scanner | Reads all standard 1D and 2D codes Minimum Width: 1D 4mil Code 39, 2D 6.7mil QR |
|
Display & Touch | ||
Display | LED-backlit LCD, 1280*10240 pixels Display Area: 337(H)*270(V) mm (17″) Brightness: 500 cd/m2 (typ.) |
|
Touch | Projected Capacitive Touch, Multi-Touch(10 Points), USB Interface | |
Physical & Environmental | ||
Dimensions (W*H*D mm) |
1720(H)*540(W)*540(D)mm | |
Weight | 65kg approximately | |
Product Certification | CE / FCC | |
Operation Temperature | 0°C to 40°C | |
Storage Temperature | -20°C to 70°C | |
Selectable Peripherals | ||
Credit Card Terminal | Certified by most banks in Vietnam, support chip & PIN, MSR Swipe | |
Bank Note Acceptor | Support VND, USD & JPY, store up to 1200 notes, LED-lit front bezel with secured key lock | |
Bank Note Dispenser | Support 4 types of VND, store up to 500 notes, 3.2 notes/sec | |
Room Card Dispenser | 100 Card Stacker, near-end sensor, empty sensor
RS-232 Serial Interface, Card Capture Function, 24VDC Power Contactless RFID Card ISO Standard ID Card |
|
Camera | Max Resolution: 1080p/30fps – 720p/60fps, autofocus, full HD glass Built-in stereo mic, 78° field of view |
|
Bracket | Customized bracket for installing customer selected payment device | |
Click to download datasheet |
Quality
With an experienced product design team, in-house manufacturing facilities, and a local support team, we ensure the success of your projects by providing you the best kiosk solutions in Vietnam in time and within your budget.
