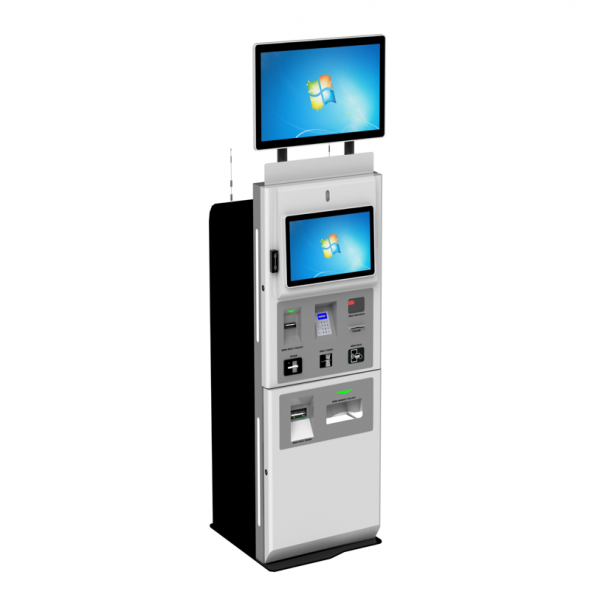

Ticketing Kiosk
Our ticketing kiosks support different payment solutions including eWallet, credit card as well as cash. It is available with different ticket printers for your selected ticket material and format. We have kiosks for selling train tickets, theme park tickets, museum tickets, and movie tickets…, etc.
Model name | ||
KT-1760 (1) | KT-1760 (2) | |
System Configuration | ||
Processor |
Intel® Core™ i3-6100TE Processor 4M Cache, 2.70 GHz
Intel® Core™ i5-6500TE Processor, 6M Cache, up to 3.3GMhz
Intel® Pentium® Processor G4400TE 3M Cache, 2.40 GHz
|
Intel® J1900 Processor 2M Cache, 2.00 GHz up to 2.42 GHz |
System Memory | DDR4 2133MHz SO-DIMM x 1, Default 4G, Max. 8GB |
DDR3L-1600Mhz SO-DIMM x 1, Default 4G, Max 8GB |
Storage Device | SATA 2.5″ SSD (default 120G SSD), Option 2.5″ HDD | |
Power Supply | DC12V/7.5A – 90W external power adapter. AC100 to 240V full range | |
O/S Support | Win 10 PRO, Win 10 IoT, Win 7, POSReady 7 | |
3″ Thermal Printer | speed up to 250mm/s at 203dpi,media width 83/80/60/58/20, 120 mm media roll diameter |
|
Barcode Scanner | Reads all standard 1D and 2D codes Minimum Width: 1D 4mil Code 39, 2D 6.7mil QR |
|
Display & Touch | ||
Display | LED-backlit LCD, 1280*10240 pixels Display Area: 337(H)*270(V) mm (17″) Brightness: 500 cd/m2 (typ.) |
|
Touch | Projected Capacitive Touch, Multi-Touch(10 Points), USB Interface | |
Physical & Environmental | ||
Dimensions (W*H*D mm) |
1817(H)*540(W)*700(D)mm | |
Weight | 85kg approximately | |
Product Certification | CE / FCC | |
Operation Temperature | 0°C to 40°C | |
Storage Temperature | -20°C to 70°C | |
Selectable Peripherals | ||
Credit Card Terminal | Certified by most banks in Vietnam, support chip & PIN, MSR Swipe | |
Bank Note Acceptor | Support VND, USD & JPY, store up to 1200 notes, LED-lit front bezel with secured key lock | |
Bank Note Dispenser | Support 4 types of VND, store up to 500 notes, 3.2 notes/sec | |
Ticket Printer | Adjustable paper width: from 20mm to 82.5mm Paper thickness: from 70 to 255 gr/m2 Paper roll or fanfold tickets Printing speed > 200 mm/s Label processing (tear off and cutter) Print head life: 100Km |
|
Camera | Max Resolution: 1080p/30fps – 720p/60fps, autofocus, full HD glass Built-in stereo mic, 78° field of view |
|
Bracket | Customized bracket for installing customer selected payment device | |
Click to download datasheet |
With an experienced product design team, in-house manufacturing facilities, and a local support team, we ensure the success of your projects by providing you the best kiosk solutions in Vietnam in time and within your budget.
